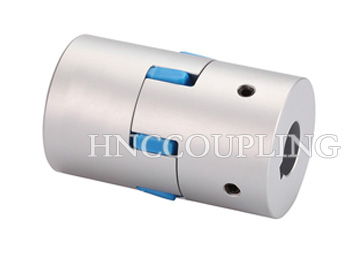

HJ Jaw Coupling
Type:HJ Jaw Coupling;
Bore:3-40mm;
Diamenter:14-65mm;
Material: aluminum
| Type | d1 d2
(mm) |
D
(mm) |
L
(mm) |
LF
(mm) |
LP
(mm) |
F
(mm) |
M | Nominal Torque
(N.M) |
Max Speed
(RPM) |
| HJ-14X22 | 3~8 | 14 | 22 | 14.3 | 6.6 | 3.8 | M3 | 2.5 | 10000 |
| HJ-20X25 | 3~11 | 20 | 25 | 16.7 | 8.6 | 4 | M3 | 5.0 | 10000 |
| HJ-20X30 | 3~11 | 20 | 30 | 19.25 | 8.6 | 5.3 | M4 | 5.0 | 10000 |
| HJ-25X30 | 4~15 | 25 | 30 | 20.82 | 11.6 | 5.6 | M4 | 10 | 10000 |
| HJ-25X34 | 4~15 | 25 | 34 | 22.82 | 11.6 | 5.6 | M4 | 10 | 10000 |
| HJ-30X35 | 5~16 | 30 | 35 | 23 | 11.5 | 5.75 | M4 | 12.5 | 10000 |
| HJ-30X40 | 5~16 | 30 | 40 | 25.60 | 11.5 | 10 | M4 | 12.5 | 10000 |
| HJ-40X50 | 6~24 | 40 | 50 | 32.1 | 14.5 | 10 | M5 | 17 | 8000 |
| HJ-40X55 | 6~24 | 40 | 55 | 34.5 | 14.5 | 10 | M5 | 17 | 8000 |
| HJ-40X66 | 6~24 | 40 | 66 | 40 | 14.5 | 12.75 | M5 | 17 | 7000 |
| HJ-55X49 | 12~32 | 55 | 49 | 32 | 16.1 | 13.5 | M6 | 45 | 6500 |
| HJ-55X78 | 12~32 | 55 | 78 | 46.4 | 16.1 | 15.5 | M6 | 45 | 6000 |
| HJ-65X80 | 14~45 | 65 | 80 | 48.5 | 17.3 | 18.1 | M8 | 108 | 5000 |
| HJ-65X90 | 14~45 | 65 | 90 | 53.5 | 17.3 | 18.1 | M8 | 108 | 5500 |
